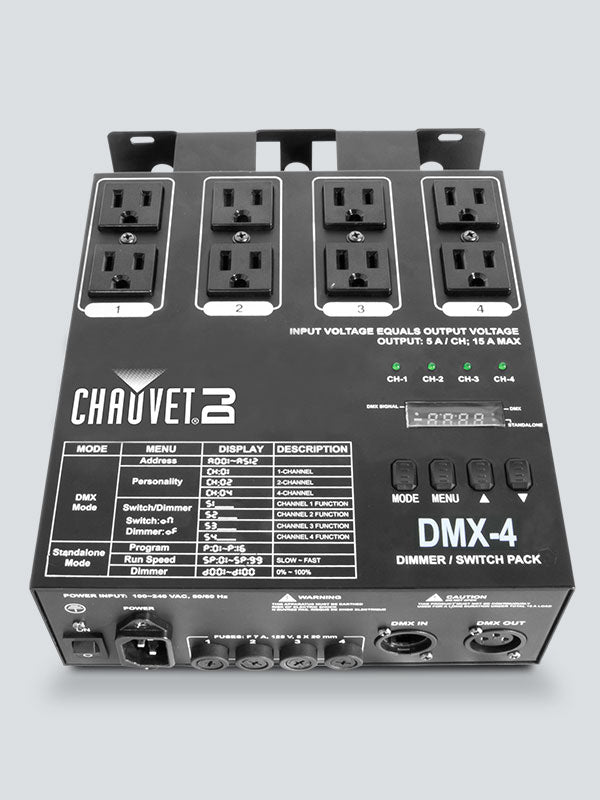

Four-channel dimmer/switch unit accommodating a maximum of 5 amps per channel (15A total).

Automatically activates or deactivates upon the detection or removal of DMX signals.

Enables DMX management for on/off operations or dimming capabilities for non-DMX devices.

Integrated circuitry produces a phantom load to mitigate ghosting and flickering issues in LED fixtures.

Offers customizable appearances with 16 integrated, programmable chases.

Easy control using standalone mode or DMX control

Increase flexibility by setting each channel as a dimmer or switch

Control up to eight units simultaneously with four duplex outlets

Monitor the status of each channel with separate LED indicators

Generate a synchronized show using easily accessible automated programs, built-in automated programsUser-friendly operation via independent mode or DMX configuration

Enhance versatility by configuring each channel as a dimmer or switch

Simultaneously manage up to eight devices with four duplex outlets

Track the status of individual channels through distinct LED indicators

Create a coordinated display using readily available automated programs and integrated automation options

Great control without DMX using automated programs with adjustable speeds and dimmer levels

Specifications

DMX Channels:1, 2, or 4DMX Connectors:3-pin XLRInput Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)Weight:5 lb (2.2 kg)Dimensions:8.3 x 7.7 x 2.8 in (210 x 194 x 70 mm)Approvals:CE

What's Included

Power cordWarranty cardEnhanced control without DMX is achievable through automated programs, featuring adjustable speeds and dimming levels.

Specifications

DMX Channels: 1, 2, or 4
DMX Connectors: 3-pin XLR
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Weight: 5 lb (2.2 kg)
Dimensions: 8.3 x 7.7 x 2.8 in (210 x 194 x 70 mm)
Approvals: CE

What's Included

Power cord
Warranty card
