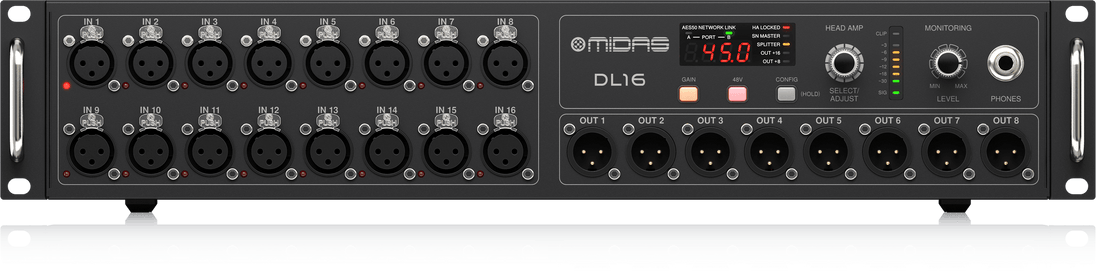

Midas DL16 Digital Snake – 16-Input Stage Box with Remote-Controlled Preamps

Take your live sound setup to the next level with the Midas DL16 Digital Snake, a rugged and reliable stage box designed to integrate seamlessly with Midas and Behringer digital mixers via AES50 networking. Engineered for pristine audio performance, the DL16 offers 16 award-winning MIDAS mic preamps, 8 balanced XLR outputs, and powerful remote-control capabilities—all in a compact, road-ready rackmount chassis.

Key Features:

16 Midas-designed microphone preamps with remote gain control for superior sound quality

8 analog XLR outputs with configurable routing via your digital console

AES50 networking for low-latency, high-channel count digital audio over CAT5e

Dual AES50 ports for daisy-chaining additional I/O units

Remote-controllable via Midas M32, Behringer X32, and compatible mixers

Ultranet port for direct connection to Powerplay personal monitoring systems

Built-in USB firmware update port

Compact 2U rackmount design for stage or FOH deployment

Technical Specifications:

Mic Inputs: 16 x XLR, remote-controlled MIDAS mic preamps

Outputs: 8 x XLR balanced line outputs

Network Ports: 2 x AES50 (Ethercon), supports cascading

Ultranet: 1 x RJ45 for personal monitoring systems

USB Port: Type B for firmware updates

Phantom Power: +48V, switchable per channel

Frequency Response: 10 Hz – 22 kHz (±1 dB)

THD+N: < 0.006% @ 1 kHz

Dynamic Range: 112 dB A-weighted

Power Supply: Internal auto-ranging 100-240V AC, 50/60Hz

Dimensions (H x W x D): 88 x 483 x 136 mm (3.5 x 19 x 5.4 in)

Weight: Approx. 3.7 kg (8.2 lbs)

Mounting: 2U rackmount

Perfect for touring, installations, or studio setups, the DL16 provides uncompromising audio quality and plug-and-play convenience. Expand your system easily and confidently with this digital stage box built on Midas’ legendary legacy of sonic excellence.
