Main Features
Receiver with LCD Display
Digital Signal Processor
High-Fidelity Cartridge Module
Infrared Carrier-Frequency Synchronization
Easy Frequency Scan and Synchronization
Super Anti-Jamming Circuit Design
Super-Low Background Noise
Frequency Auto Search
19-inch 1-Space Rack Mountable
Specifications
Frequency Range: 510~560 MHz or 640~690 MHz
Frequencies: 4x50 CH’s
Frequency Stabilization: <±30ppm
Dynamic Range: >90dB
Total Harmonic Distortion: < 0.5 %
Frequency Response: 50Hz ~ 15 KHz

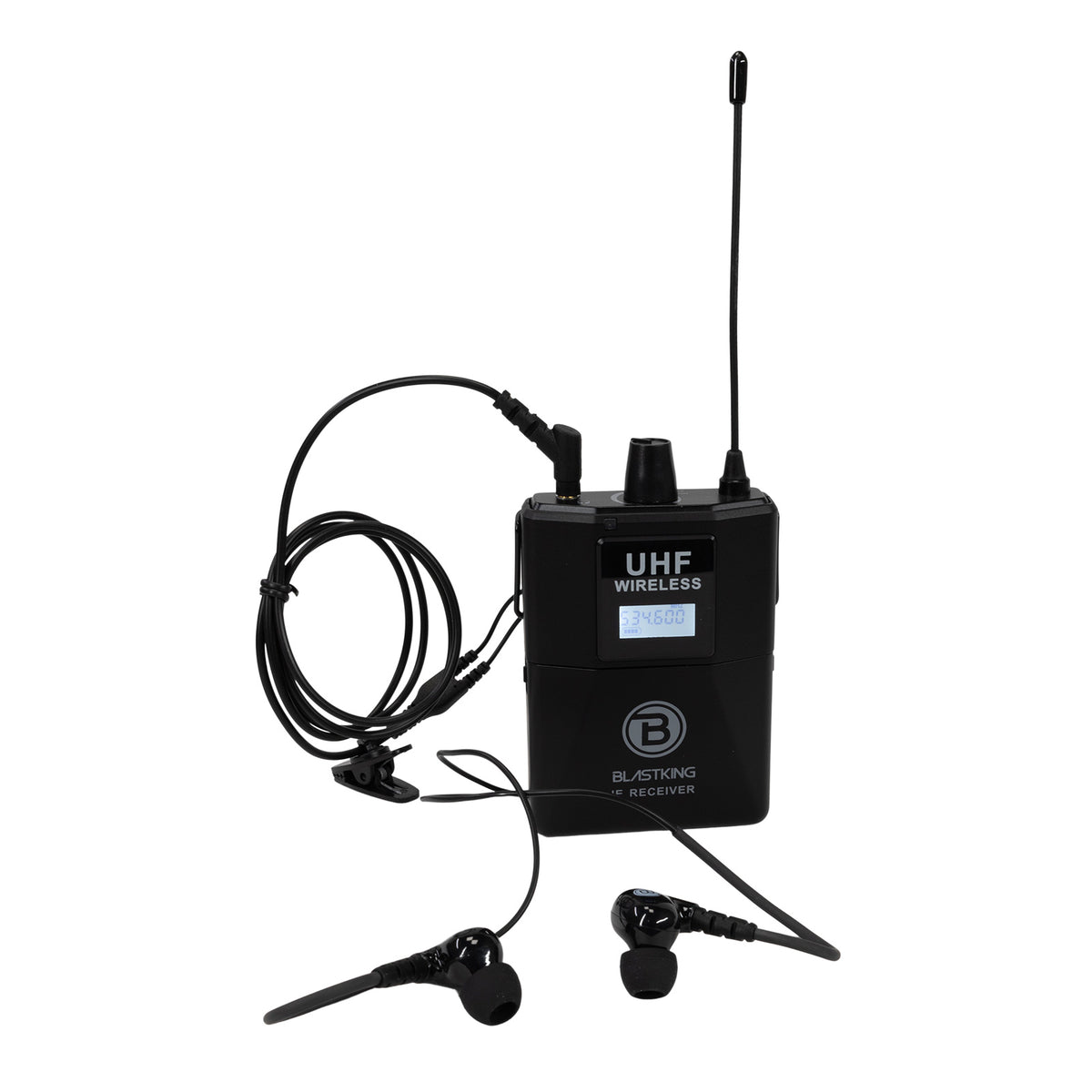

Body Pack Receiver
Power Consumption: 3-8mW
Modulation Method: π /4 -DQPSK
Sampling Ratio: 48KHz
Delay Time of Audio Transmission: <3ms
Battery Voltage: AA1.5V x 2
Transmitter
Power Supply: AC 100-240V 50/60Hz, DC12V
Power Consumption: 200mW
S/N Ratio: >96dB
RX Sensitivity: <-94dBm
Unique ID Address: Yes
Audio Output: Balanced Type 0~±500mV Mix Type 0~±300mV
Includes:
Receiver
(4) UHF Antennas
(4) Body Pack Receivers

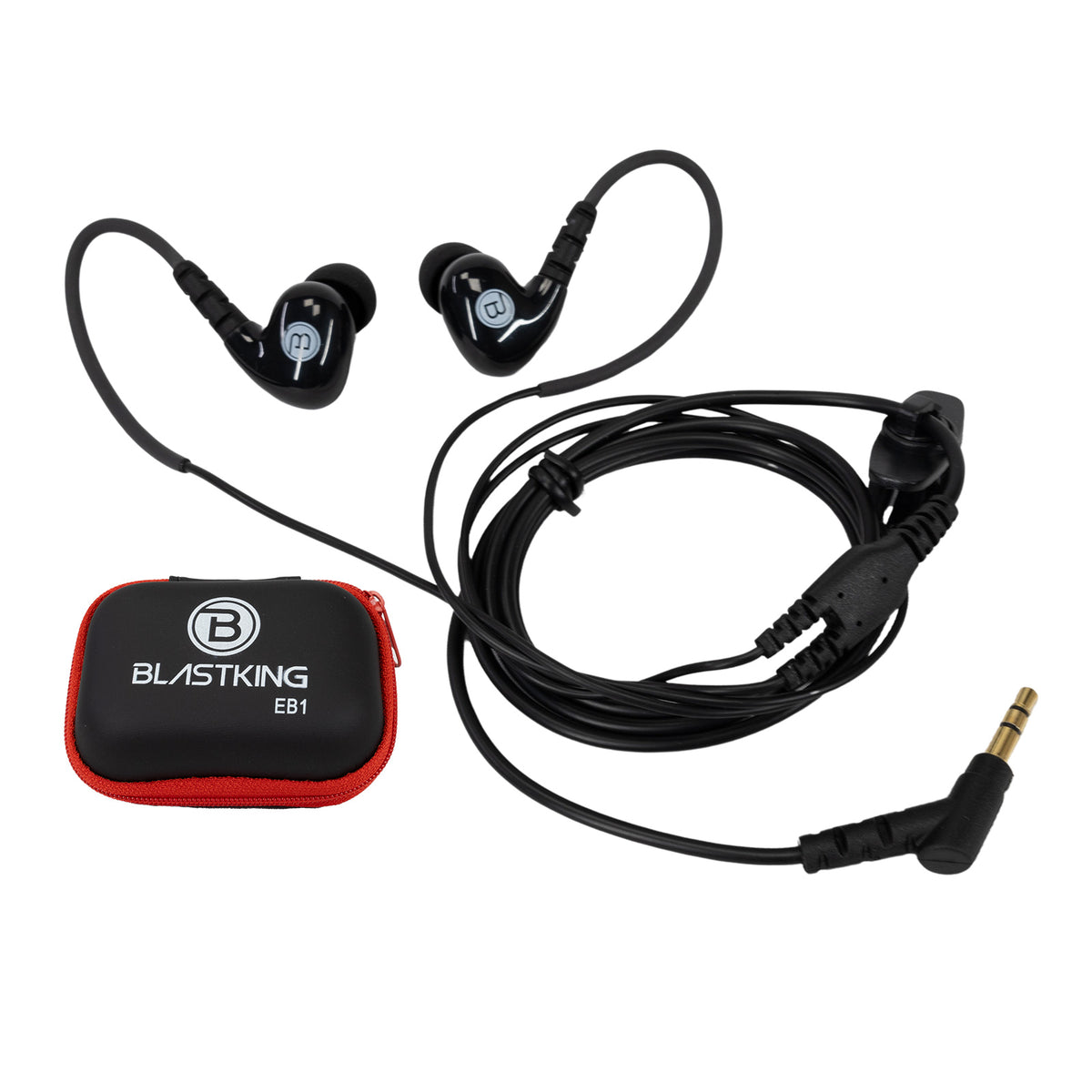

(4) Earphones with Carrying Case
100-240V AC Power Adapter
Plastic Carrying Case
Batteries
